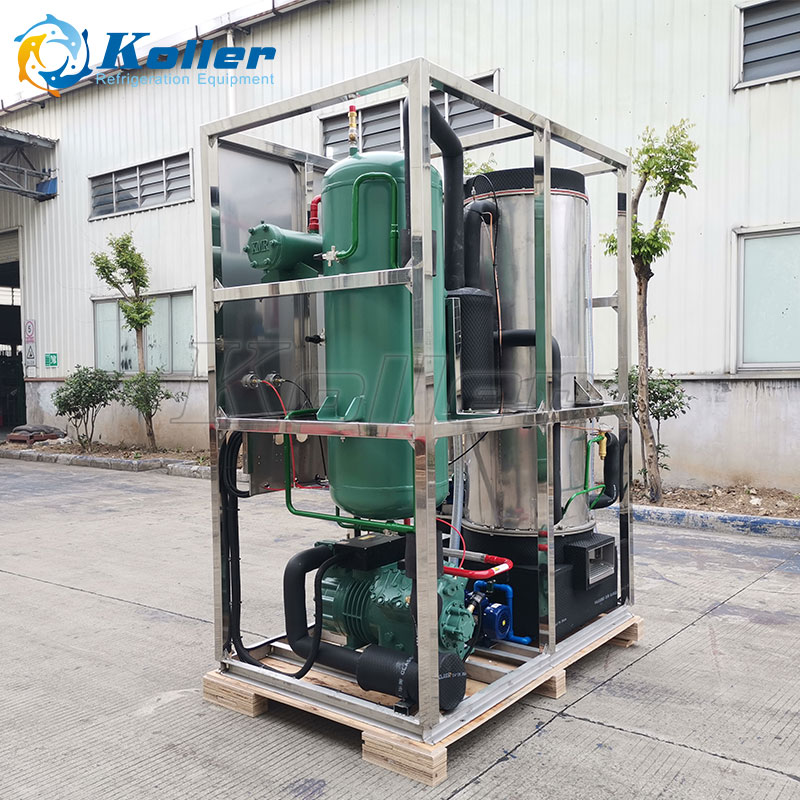

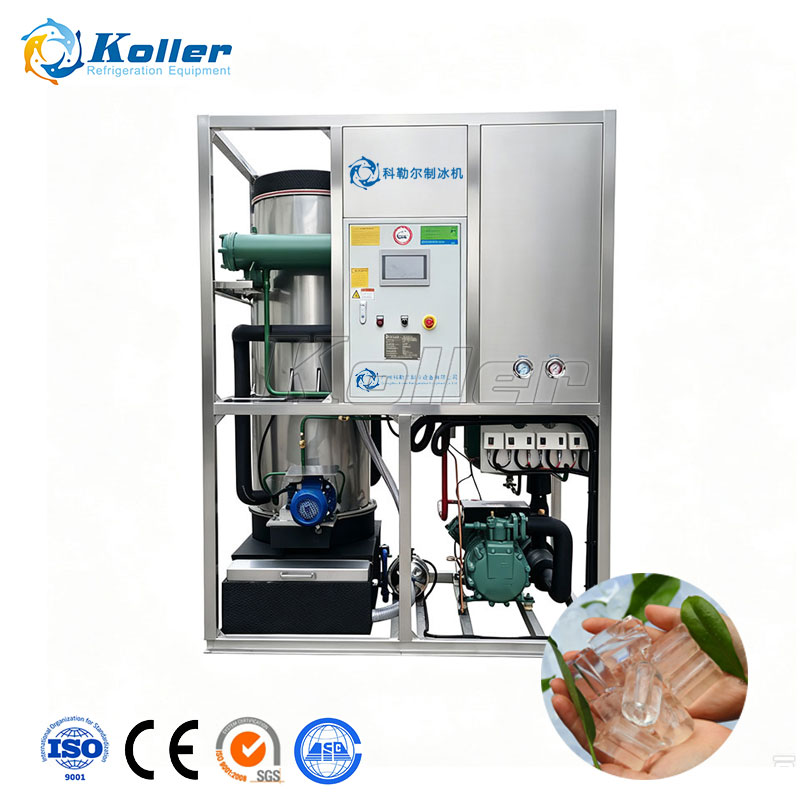

TV50 Tube Ice Machine

TV50 cylindrial ice maker machine 5 ton

TV50 Tube Ice Machine

Tube ice is cylinder-shaped ice with a hole in the middle.
Koller Tube ice is transparent and sanitary, not easy to melt.
Its inner and outer diameter can be adjusted for your requirements.
Daily capacity:: 5ton/24hours.
Ice length: : 30mm, 35mm, 40mm, 45mm, 50mm.
Ice diameter:: 20mm, 28mm, 34mm, 40mm.
Main application:: Drinking, beverage cooling, vegetable fresh-keeping, fishery preservation, chemical processing, etc.
How Ice Machine Works
High quality ice machine works with high efficiency, manufacturing quality ice.
Main Features
Ice size can be customized
Ice length: 30mm, 35mm, 40mm, 45mm, 50mm.
Ice diameter: 20mm, 28mm, 34mm, 40mm.
The inner diameter can be adjusted according to the ice making time, usually it's between 5mm-10mm.
Water cooling way
Normally, koller tube ice machine is adopt with water cooling system and cooling tower is equipped.
But if you need air cooling system, we can design it too.
Water purifier and ice bin can be equipped if needed.
Food standard tube ice
Koller tube ice machine adopt stainless steel 304 material for the mainframe structure.
The tube ice is sanitery enough to meet the food standard.

Technical Parameter

Capacity 5 Ton/24hours
Refrigerant R22/R404A/R507/R449
Compressor Brand Bitzer/Refcomp
Cooling Way Water Cooling
Compressor Power 28 HP
Ice Cutter Motor 0.75 KW
Power of Circulating Water Pump 0.75 KW
Power of Cooling Water Pump 2.2 KW
Cooling Tower Motor 0.75 KW
Machinery Unit Size(L*W*H) 1660mm*930mm*2175mm
Machinery Unit Weight About 1650kg
Input Water Temp 21degrees Celsius
Evaporating Temp 25degrees Celsius
Condensing Temp 40degrees Celsius
Supply power 380V/50Hz(60Hz)/3P; 220V(230V)/50Hz/1P; 220V/60Hz/3P(1P); 415V/50Hz/3P; 440V/60Hz/3P.
The above data is subjected to the final design without notice.

Aftersales Service without Hassle

1 Year Warranty

Free repairment & spare components are covered in warranty.
flipbox-image

1 Year Warranty

Free repairment & spare components are covered in warranty.

Easy Installment

Online video guidance or onsite support. Operation and maintenance training is also available if needed.
flipbox-image

Easy Installment

Online video guidance or onsite support. Operation and maintenance training is also available if needed.

24/7 Technical Support

Solutions will be offered within 24 hours to keep your business working as usual anywhere in the world.
flipbox-image

24/7 Technical Support

Solutions will be offered within 24 hours to keep your business working as usual anywhere in the world.
