KP50 Flake Ice Machine
Flake ice is dry and smooth, with ice thickness of 1.5~2.0mm, without edges or corners.
With big surface, the flake ice can cover the food easily to cool down the food quickly.
The meltwater can moisten the products’ surface to reduce the weight loss.
With big surface, the flake ice can cover the food easily to cool down the food quickly.
The meltwater can moisten the products’ surface to reduce the weight loss.
Model: KP50
Daily capacity: 5000kg/24hours
Ice thickness: 1.5~2.0mm
Main application: large supermarket, meat/aquatic food processing, fowl slaughtering, ocean-going fishing, concrete construction project, dye chemical industry, etc.
How Ice Machine Works
High quality ice machine works with high efficiency, manufacturing quality ice.
Main Features

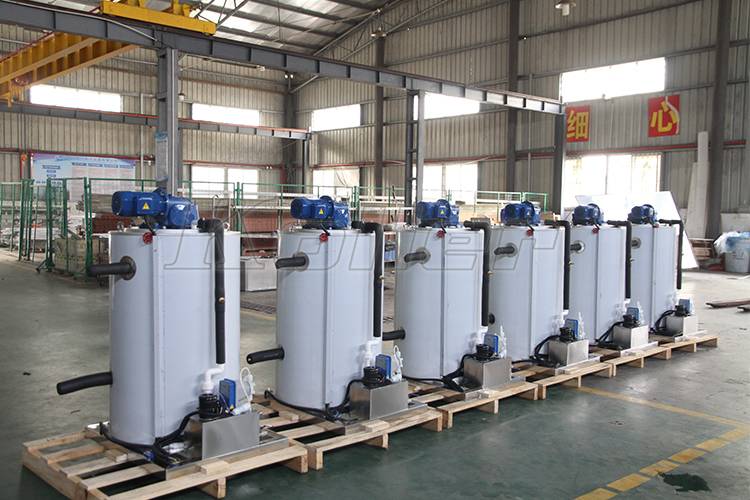

Evaporator Drum
Adopts fixed and stationary vertical design to reduce the abrasion and improve the leakproofness, which can prevent refrigerant from leakage.
Using excellent SUS304 material and automatic welding technology to improve its strength and precision.
Using excellent SUS304 material and automatic welding technology to improve its strength and precision.
Ice Blade
The ice blade for Koller flake ice machine is rolling spiral design, low resistance and loss, no noise and fine ice.
Flake ice
Flake ice: ice thickness 1.5~2.0mm, it is dry and smooth, without edges or corners, which can protect the food very well.
With big surface, the flake ice can cover the food easily to cool down the food quickly.
The meltwater can moisten the products’surface to reduce the weight loss.
With big surface, the flake ice can cover the food easily to cool down the food quickly.
The meltwater can moisten the products’surface to reduce the weight loss.
Technical Parameter
| Capacity | 5 Ton/24hours |
| Refrigerant | R22/R404A/R507/R449 |
| Compressor Brand | Bitzer/Refcomp |
| Cooling Way | Air Cooling/Water Cooling |
| Compressor Power | 28 HP |
| Ice Cutter Motor | 0.37 KW |
| Power of Circulating Water Pump | 0.25 KW |
| Power of Water Cooling Pump | 2.2 KW |
| Cooling Fan Motor | 0.75 KW |
| Machinery Unit Size(L*W*H) | 1680mm*1520mm*1450mm |
| Machinery Unit Weight | About 1150kg |
| Input Water Temp | 21degrees Celsius |
| Evaporating Temp | 25degrees Celsius |
| Condensing Temp | 40degrees Celsius |
| Supply power | 380V/50Hz(60Hz)/3P; 220V(230V)/50Hz/1P; 220V/60Hz/3P(1P); 415V/50Hz/3P; 440V/60Hz/3P. |
| The above data is subjected to the final design without notice. |
Aftersales Service without Hassle
1 Year Warranty
Free repairment & spare components are covered in warranty.
1 Year Warranty
Free repairment & spare components are covered in warranty.
Easy Installment
Online video guidance or onsite support. Operation and maintenance training is also available if needed.
Easy Installment
Online video guidance or onsite support. Operation and maintenance training is also available if needed.
24/7 Technical Support
Solutions will be offered within 24 hours to keep your business working as usual anywhere in the world.
24/7 Technical Support
Solutions will be offered within 24 hours to keep your business working as usual anywhere in the world.
