5 Ton Tube Ice Machine | Koller TV50 Factory Testing

Manufactured at Koller’s ice machine factory in China, the TV50 has a rated production capacity of 5,000 kg per 24 hours. It produces cylindrical tube ice with a small inner hole, suitable for beverage cooling, packaged ice distribution, food processing, and commercial ice supply.

This video provides a closer look at the machine during factory testing, demonstrating its equipment configuration and preparation for delivery.

Key Features of Koller TV50 Tube Ice Machine

1. 5 Tons/Day Industrial Ice Production

The Koller TV50 offers a rated capacity of 5 tons per 24 hours, making it suitable for commercial ice factories, ice wholesalers, beverage distributors, and food-processing facilities.

2. Cylindrical Tube Ice with a Small Inner Hole

The TV50 produces cylindrical ice with a hollow center, providing a practical ice format for beverages and commercial ice distribution.

Available tube ice dimensions include:

• 20 × 30 mm

• 28 × 35 mm

• 34 × 45 mm

• 40 × 50 mm

Other dimensions and solid tube ice configurations can be discussed according to project requirements.

3. Siemens PLC Automatic Control

The intelligent control system manages automatic water supply, ice freezing, defrosting, and production operations.

Built-in protection functions include voltage, phase sequence, overload, and water shortage protection, helping operators manage daily production more conveniently.

4. Food-Grade SUS304 Stainless Steel

The evaporator's ice-contact components and water tanks use food-grade SUS304 stainless steel, supporting hygienic edible ice production when combined with suitable water treatment and sanitation procedures.

5. Automatic Ice Cutting System

The TV50 features a stainless steel ice cutting mechanism designed to produce tube ice with consistent lengths while reducing unnecessary ice breakage.

6. Flexible Refrigeration and Electrical Configurations

Air-cooled and water-cooled configurations are available. Electrical options can also be selected to suit different countries, including 380V/50Hz/3P and other supported three-phase supplies.

Factory Testing Before Shipment

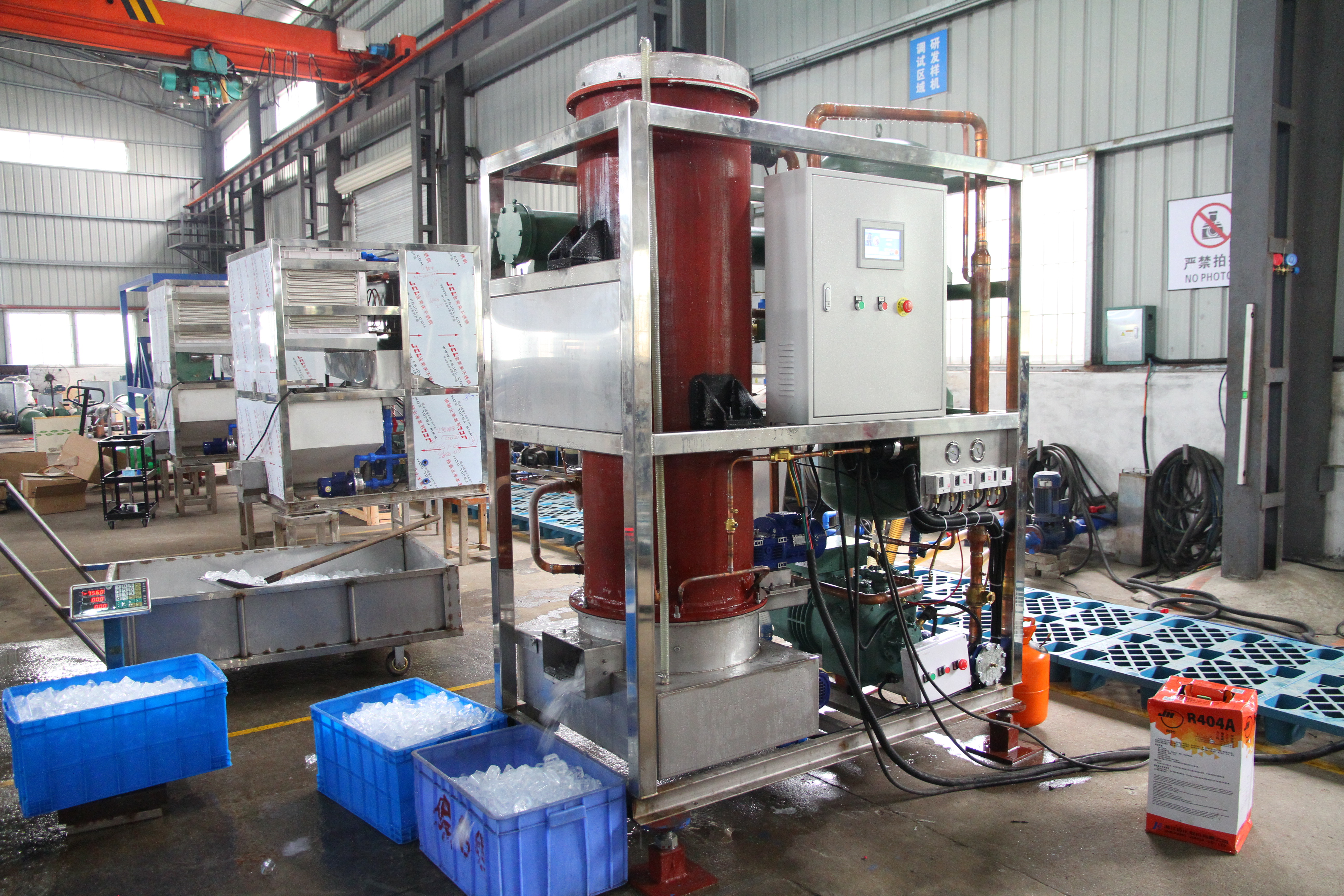

This video shows the Koller TV50 5-ton tube ice machine undergoing factory testing at our manufacturing facility.

Before shipment, equipment testing helps verify that the machine operates according to its intended configuration.

Our pre-shipment inspection process focuses on important operating functions, including:

• Refrigeration system operation

• Automatic water supply and ice-making controls

• Ice formation and harvesting

• Tube ice cutting performance

• Electrical control and protection functions

• Equipment condition before packaging

Factory testing is an important part of equipment preparation, helping identify issues before the machine is dispatched to an overseas customer.

Packaging, Shipping and Installation Support

After the required testing and inspection procedures, Koller prepares the machine for shipment according to the equipment configuration and transportation requirements.

Suitable packaging and securing arrangements help protect the equipment during handling and international sea transportation.

For overseas customers, Koller also provides installation documentation and technical assistance to support equipment setup and commissioning.

Available support includes:

• English installation and operation manuals

• Equipment operation and maintenance guidance

• Remote technical support

• Spare parts assistance

• Troubleshooting and maintenance guidance

The TV50 product warranty is one year, with additional compressor warranty coverage subject to the applicable compressor manufacturer's terms.

Applications | Where Is 5-Ton Tube Ice Used?

1. Commercial Ice Factories and Wholesale Distribution

The TV50 can support businesses producing tube ice for packaging, wholesale distribution, and resale to local commercial customers.

2. Beverage and Hospitality Businesses

Tube ice is widely used by restaurants, hotels, bars, beverage shops, and distributors supplying edible ice for drinks.

3. Food Processing

Tube ice can be used in selected meat, poultry, and seafood processing operations where additional cooling is required.

4. Supermarkets and Food Distribution

Commercial food businesses may use tube ice for cooling applications, depending on their handling and storage requirements.

5. Industrial Cooling

Tube ice can also support suitable industrial cooling applications, including selected construction and processing operations.

Koller TV Series | Industrial Tube Ice Machine Options

Koller provides tube ice machines in different capacities for commercial and industrial ice production projects.

• TV10 – 1 Ton/Day: Small edible ice production businesses

• TV20 – 2 Tons/Day: Local ice suppliers and beverage distributors

• TV30 – 3 Tons/Day: Growing commercial ice production operations

• TV50 – 5 Tons/Day: Medium-scale ice factories and packaged ice businesses

• TV100 – 10 Tons/Day: Industrial tube ice production and wholesale supply

• TV200 – 20 Tons/Day: Large ice factories and centralized ice distribution

• TV300 – 30 Tons/Day: High-capacity industrial tube ice production

For customers planning a complete ice factory, Koller can also provide supporting equipment such as water treatment systems, ice storage facilities, and automatic ice packaging solutions.
