Koller Ice Machine Manufacturer - Walk in Cool Room

Walk in cool room for vegetable, fruit, flower, fresh milk, red wine, chocolate, medicine, seeds, and similar items storage
❄ Customizable room size
❄ Precise temperature control
❄ Customizable door type and size

Model:

VCR

MOQ:

1 Set

Certification:

CE, ISO9001

Inquiry

Write a Review

Product Introduction

Koller walk in cool room, also known as high-temperature cold storage room, maintains a temperature range of -5°C to +5°C and is suitable for storing flower, vegetable, fruit, fresh milk, red wine, chocolate, medicine, seeds, and similar items.

Cold storage for ice storage

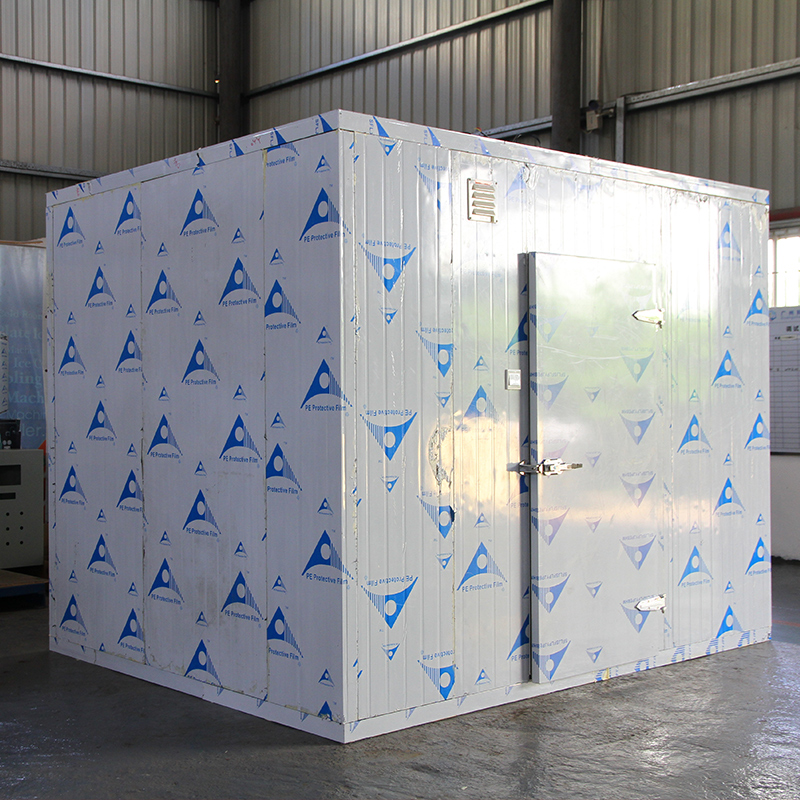

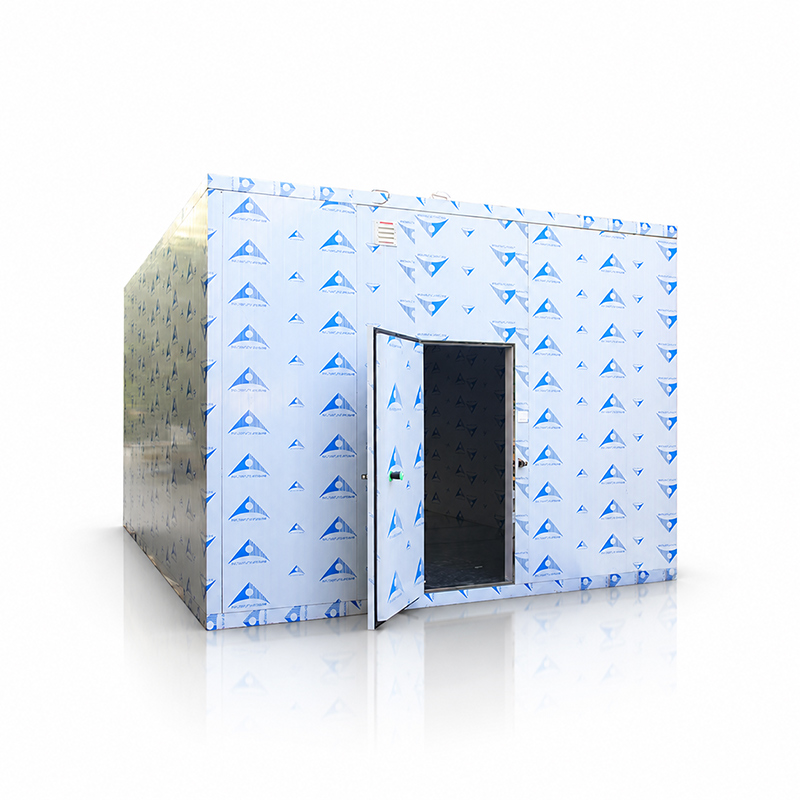

Walk in Cold Room

Hinged door

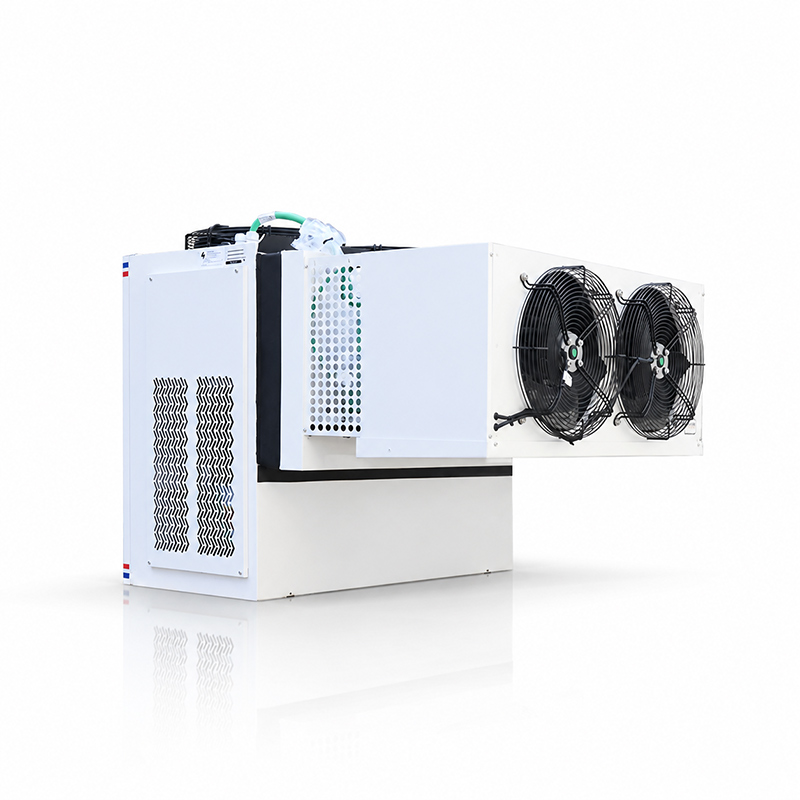

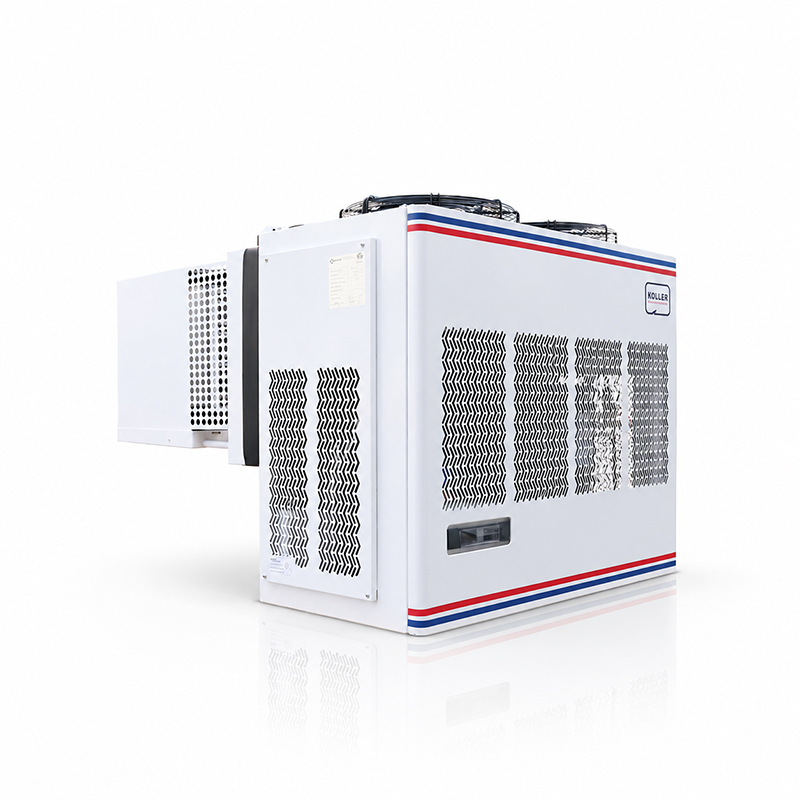

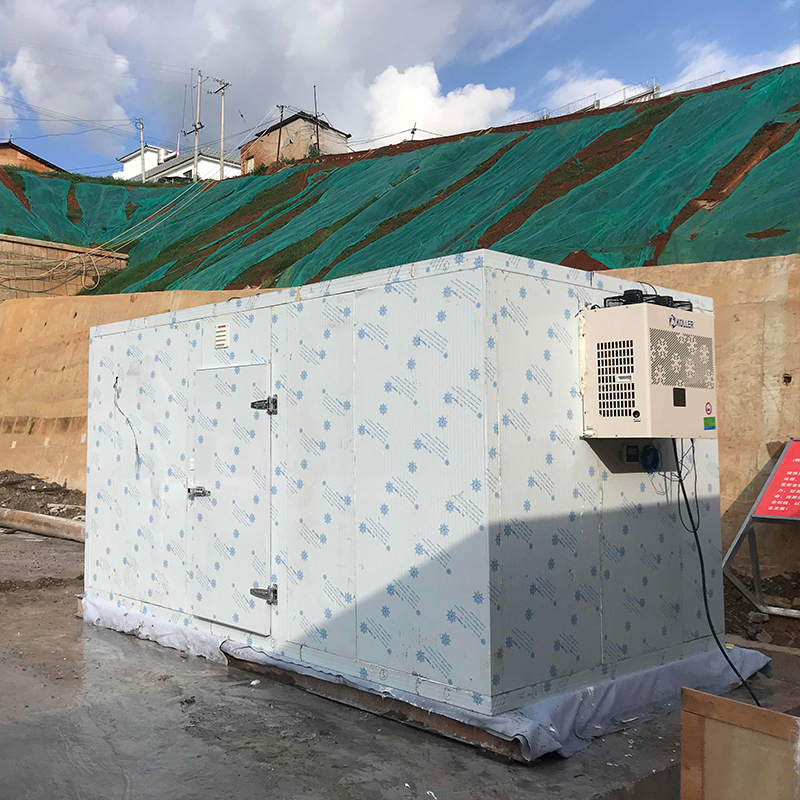

Cold Room with Monoblock Unit

Main Features Of Koller Walk In Cool Room

Intelligent & Automated Control System

Equipped with a fully automatic digital control system for the refrigeration unit, it supports precise temperature management and automatic defrosting functions.

Various Door Types and Sizes.

The cold storage doors come in sliding doors, hinged doors, and glass doors, and the door sizes can be customized according to customer requirements.

Integrated Containerized Design

The cold storage features a standard container-like structure, which allows for factory pre-assembly and complete system integration to guarantee quality. Also, the unit can be easily relocated if needed, offering great operational flexibility.

Wide Capacity Range & Versatility

The storage capacity ranges from 3 tons to 100 tons, making it suitable for a diverse array of products, including flower, fruits, vegetables and seeds, etc. It is an ideal solution for both commercial cold chain logistics and industrial processing applications.

Reliable Core Components

The refrigeration unit adopts an all-in-one integrated system and is powered by globally recognized compressors, including Copeland and Bitzer. This ensures high operational stability, low failure rates, and extended service life, even in demanding industrial environments.

High-Performance Insulation

The panels are manufactured using high-pressure polyurethane foaming technology, providing superior thermal insulation. This robust structure minimizes cold loss, reduces energy consumption, and ensures the durability of the storage environment under various working conditions.

VCR Walk In Cool Room Parameter Table

Model	VCRXX (Customizable)	Temperature Range	-5°C ~ +5°C (adjustable)
Temperature Control Accuracy	±2°C	External Dimensions (L×W×H)	Customizable
Storage Capacity	3 – 100 tons (depending on product density and configuration)	Panel Material	High-pressure polyurethane foam (PU)
Panel Thickness	75mm / 100mm / 150 / 200mm (customizable)	External Cladding	Corrugated steel / Stainless steel (optional)
Compressor Brand	Bitzer / Refcomp (or equivalent world-class brand)	Cooling Mode	Water Cooling / Air Cooling
Compatible Power Supply	380V/50Hz/3P; 380V/60Hz/3P;220V/60Hz/3P; 415V/50Hz/3P; 440V/60Hz/3P; 220V/60Hz/1P; 220V/50Hz/1P	Refrigerant Options	R507 / R404A / R449
Main Application Scenarios	Storage of Vegetable, Fruit, Flower, Fresh Milk, Red Wine, Chocolate, Medicine, Seeds, and Similar Items	Disclaimer	All parameters are subject to final design without prior notice

Wide Application of VCR Walk In Cool Room

Fruit & Vegetable Pre-Cooling

Rapidly removes field heat after harvest to lock in moisture and freshness, extending shelf life.

Flower Preservation

Maintains low temperature and high humidity to slow respiration, keeping buds in a ready-to-bloom state.

Egg & Dairy Short-Term Storage

Maintains stable cool conditions to slow bacterial growth and preserve the quality of milk and fresh eggs.

Chocolate & Pastry Display Storage

Prevents fat bloom and surface cracking, maintaining refined texture and appearance.

Traditional Chinese Medicine Storage

Low temperatures prevent insect infestation and mildew while preserving active ingredients from heat damage.

Frequently Asked Questions About Koller VCR Walk In Cool Room

Q: Can you customize the cool room size according to our need?

A: Yes, the cool room size can be designed according to your need.

Q: What compressor brands are equipped for your walk in cool room?

A: Standard fitted with Bitzer or Refcomp well-known European compressors, stable performance, low failure rate and easy global spare parts supply.

Q: Does the machine support multi-voltage power for different countries?

A: Yes, Our standard voltage is 380V/50Hz/3P, but we can also customize other voltages such as 380V/60Hz/3P, 415V/50Hz/3P, 440V/60Hz/3P, 220V/60Hz/3P. For small cool rooms, 220V/50Hz/1P and 220V/60Hz/1P can also be accommodated.

Q: What refrigerant options can I choose?

A: Available refrigerants include R404A, R507 and eco-friendly R449A to match different national environmental regulations.

Q: Do you supply installation guidance and after-sales service overseas?

A: We offer detailed English installation manuals, operation videos, remote online technical support, and long-term spare parts supply for global customers.

Q: How long is the warranty period of the walk in cool room?

A: The whole machine enjoys 1-year full warranty, with core compressors covered by extended brand official warranty.

Q: What’s the production time for the machine?

A: Normally the production time is 30–45 working days for standard designs and 50–90 working days for custom design, both calculated after deposit received.
