Blast freezer for Sashimi-Grade Tuna Preservation, IQF (Individually Quick Frozen) Flash Freezing and Aerospace Material Extreme-Temperature Testing.
❄ Customizable room size
❄ Precise temperature control
❄ Customizable door type and size

Model:

VCR

MOQ:

1 Set

Certification:

CE, ISO9001

Inquiry

Write a Review

Product Introduction

Koller blast freezer, also known as deep freezer, ultra-low temperature cold storage, maintains a temperature of lower than -30°C, is suitable for Sashimi-Grade Tuna Preservation, IQF (Individually Quick Frozen) Flash Freezing and Aerospace Material Extreme-Temperature Testing.

5 (43)

Main Features Of Koller Blast Freezer

Intelligent & Automated Control System

Equipped with a fully automatic digital control system for the refrigeration unit, it supports precise temperature management and automatic defrosting functions.

Various Door Types and Sizes.

The cold storage doors come in sliding doors, hinged doors, and glass doors, and the door sizes can be customized according to customer requirements.

Integrated Containerized Design

The cold storage features a standard container-like structure, which allows for factory pre-assembly and complete system integration to guarantee quality. Also, the unit can be easily relocated if needed, offering great operational flexibility.

High-Performance Insulation

The panels are manufactured using high-pressure polyurethane foaming technology, providing superior thermal insulation. This robust structure minimizes cold loss, reduces energy consumption, and ensures the durability of the storage environment under various working conditions.

Reliable Core Components

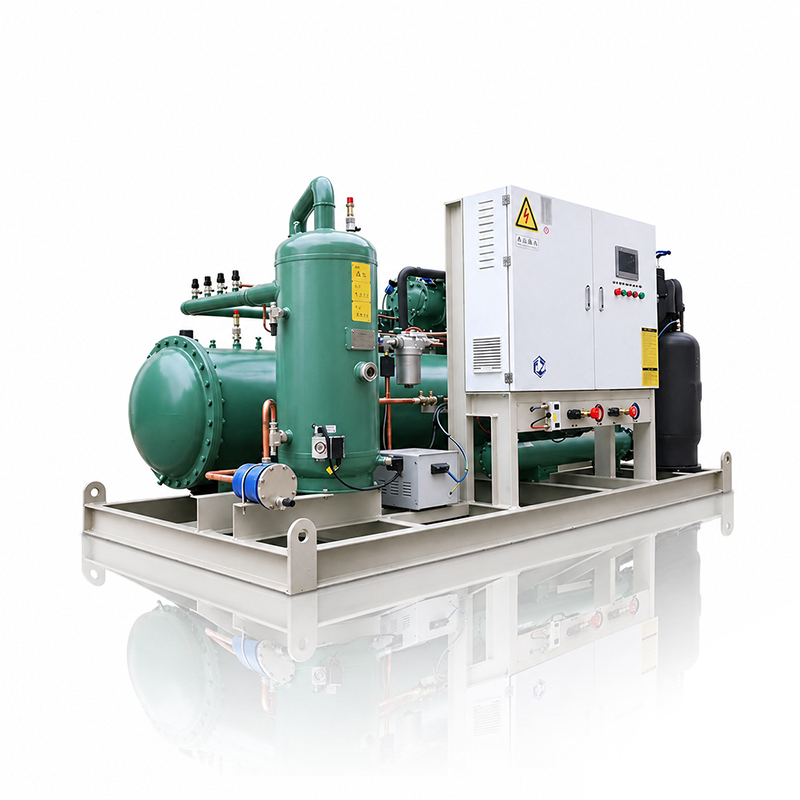

The refrigeration unit adopts an all-in-one integrated system and is powered by globally recognized compressors, including Copeland and Bitzer. This ensures high operational stability, low failure rates, and extended service life, even in demanding industrial environments.

Wide Capacity Range & Versatility

The storage capacity ranges from 3 tons to 100 tons, making it suitable for a diverse array of products, including ice, fruits, vegetables, seafood, and meat. It is an ideal solution for both commercial cold chain logistics and industrial processing applications.

VCR Blast Freezer Parameter Table

Model	VCRXX (Customizable)	Temperature Range	Lower than -30°C (adjustable)
Temperature Control Accuracy	±2°C	External Dimensions (L×W×H)	Customizable
Storage Capacity	3 – 100 tons (depending on product density and configuration)	Panel Material	High-pressure polyurethane foam (PU)
Panel Thickness	150 / 200mm (customizable)	External Cladding	Corrugated steel / Stainless steel (optional)
Compressor Brand	Bitzer / Refcomp (or equivalent world-class brand)	Cooling Mode	Water Cooling / Air Cooling
Compatible Power Supply	380V/50Hz/3P; 380V/60Hz/3P; 220V/60Hz/3P; 415V/50Hz/3P; 440V/60Hz/3P	Refrigerant Options	R507 / R404A / R449
Main Application Scenarios	Sashimi-Grade Tuna Preservation, IQF (Individually Quick Frozen) Flash Freezing and Aerospace Material Extreme-Temperature Testing.	Disclaimer	All parameters are subject to final design without prior notice

Wide Application of Blast Freezer

Sashimi-Grade Tuna Preservation

Instant ultra-low freezing locks intracellular moisture, ensuring juiciness and texture after thawing for raw consumption.

IQF (Individually Quick Frozen) Flash Freezing

Uses ultra-low airflow to freeze individual pieces separately without clumping, preserving shape and nutritional value.

Aerospace Material Extreme-Temperature Testing

Simulates outer-space cold conditions to evaluate brittleness and impact resistance of alloys and composites.

Frequently Asked Questions About Koller Blast Freezer

Q: Can you customize the blast freezer size according to our need?

A: Yes, the blast freezer room size can be designed according to your need.

Q: How to select the suitable refrigeration unit?

A: Please provide the dimensions of your blast freezer, the products to be frozen, and the product inlet and outlet temperatures. We will then select the most suitable refrigeration unit for you based on these requirements.

Q: What compressor brands are equipped for your walk in cool room?

A: Standard fitted with Bitzer or Refcomp well-known European compressors, stable performance, low failure rate and easy global spare parts supply.

Q: Does the machine support multi-voltage power for different countries?

A: Yes, Our standard voltage is 380V/50Hz/3P, but we can also customize other voltages such as 380V/60Hz/3P, 415V/50Hz/3P, 440V/60Hz/3P, 220V/60Hz/3P.

Q: What refrigerant options can I choose?

A: Available refrigerants include R404A, R507 and eco-friendly R449A to match different national environmental regulations.

Q: Do you supply installation guidance and after-sales service overseas?

A: We offer detailed English installation manuals, operation videos, remote online technical support, and long-term spare parts supply for global customers.

Q: How long is the warranty period of the blast freezer?

A: The whole machine enjoys 1-year full warranty, with core compressors covered by extended brand official warranty.

Q: What’s the production time for the machine?

A: Normally the production time is 30–45 working days for standard designs and 50–90 working days for custom design, both calculated after deposit received.
